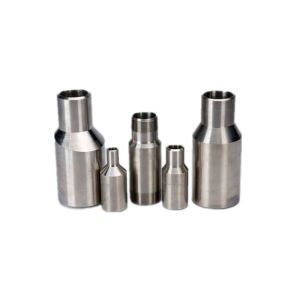

    1 1 / 2 " X 1 " Sch 80 Stainless Steel Pipe Fittings Swage Nipple PBE ASTM A182 F316L MSS SP 95

    Stainless Steel Swage Nipple 1 1/2"X1" Sch 80 PBE ASTM A182 F316L MSS-SP-95


    Swage Nipple Manufacture

    Best Quality Concentric Swage Nipple is manufactured with top class stainless steel grade 316/316L and the most complete dimension range, the price is attractive and nigotiable.

    Swage nipples are similar to reducer but are used for connecting buttweld pipes to smaller screwed or socket weld pipes. Forged swage nipple are designed to use in oil refineries, chemical processing, petrochemical and other industries. We have a team of experienced people who contribute too much to provide the premium quality pipe nipple at an affordable rate.

    Concentric Swage Nipple Dimensions

    1 1 / 2 " X 1 " Sch 80 Stainless Steel Pipe Fittings Swage Nipple PBE ASTM A182 F316L MSS SP 95


    Size

    1/4 to 12 inch / DN8-DN300

    Pressure RatingSch 10s, Sch 20s, STD, Sch 40s, XS, Sch 80s
    StandardMSS-SP-95
    TypeConcentric and Eccentric Swage Nipple
    End TypeTBE, TOE, PBE, POE, BBE, BOE,
    Stainless SteelASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
    Caron SteelASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
    Alloy SteelASTM A182 F1, F5, F9, F11, F12, F22, F91
    Duplex SteelASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

    Swage Nipple Weight

    1 1 / 2 " X 1 " Sch 80 Stainless Steel Pipe Fittings Swage Nipple PBE ASTM A182 F316L MSS SP 95

    Package of Stainless Steel 316 Forged Fittings

    • Marked with Grade, Lot No, Size, Standard and Pressure.
    • Wrapped forged swage nipple with plastic foam.
    • Packed stainless steel fittings into cartons and wooden cases.

    Inspection of Stainless Steel Swage Nipple

    • Visual the surface. Such as dents, die marks, porosity, undercuts.
    • Check the marking. Such as size, material grade, pressure, heat no.
    • Measure the size. Such as diameter, thickness, height of end to end.
    • Test the chemical composition.

    ASTM A182 F316 Chemical Composition

    CMnPSSiNiCrMo
    0.0320.040.03110-1416-182-3

    ASTM A182 F316 Mechanical Properties

    Tensile StrengthYield StrengthElongation
    485 (Mpa)170 (Mpa)35 (%)

    Advantage of Swage Nipple Sch 80

    • Reasonable Price
    • Good Quality
    • Fast Delivery
    • Safe Package
    • Reliable Shipment
